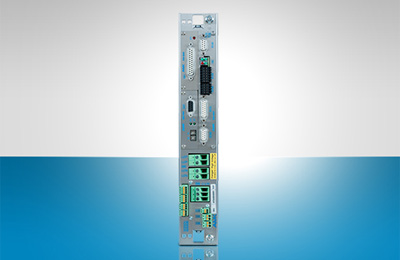

驱动模块-KW系列 详细信息
更新时间:2014/4/24 14:21:47 点击:2253

产品简介

• Integrated "STO" safety function • New dimension of power density • Effective heat dissipation and long service life with use of cold plate technology • Complex, networked machines made possible through real-time synchronization • High efficiency and compact machine design

详细资料



The KW digital compact inverter modules control drives in 4-quadrant operation precisely and with high dynamic response. They can be multifunctionally networked with the higher-level controller via various fieldbuses.
The KWD compact inverter module contains two independent KW inverters in a single housing. This represents a low-cost and extremely compact solution for low-power servo drives.
产品特性
·         Power rating up to 200 kVA
·         Cooling in cold plate technology
·         Integrated safety function „STO“ in PL e according to EN ISO 13849-1
·         Accommodates 1 controller card (KWR03, KW-R03P, KW-R04, KW-R06 or KW-R07) and up to 2 option cards. Controller and option cards must be ordered separately;
技术参数

Type
KW 2
KW 3
KW 5
KW 8
KW 10
KW 20
KW 40
KW 60
KW 100
Input voltage
V DC
540 ... 650
Switch-off barrier
V DC
850
Rated output voltage
V AC
3 x 35 0 for sinusoidal currents
Output frequency
Hz
0 ... 8001)
Rated output power
kVA
2
3
5
8
10
20
40
60
100
Maximum output power
kVA
4
6
10
16
20
40
80
120
2002)
Rated output current
A
3,3
5
8,2
13,2
16,5
33
66
99
165
Maximum output current (for 10s)
A
6,6
10
16,5
26,4
33
66
132
198
3303)
Efficiency
%
> 98
Cooling system
type cold plate
Weight
kg
3
3
3
3
4,2
4,2
8
8
16
Module width
mm
55
55
55
55
85
85
170
170
255

1) 0…400 at 4 kHz PWM
2) at 4 kHz PWM, 165 kVA at 8 kHz PWM
3) at 4 kHz PWM, 247,5 A at 8 kHz PWM
